OEM PRODUCTS: DIAPHRAGM PUMPS

iwaki brand - OEM Products: Diaphragm Products

Iwaki-America manufactures a line of small non-metallic positive displacement diaphragm pumps for OEM applications for fluid (and air) transfer. Because of their compact size, availability in DC power, and chemically inert materials of construction, these pumps can be an option for many OEM applications in medical, biotech, analyzer, laboratory and fuel cell.

APN-W Series (DC)

Models: 6 models
Flow Rate: 500 ml/min max water
Max Head: Up to 11.6 psi max
Construction: Polypropylene with Viton, EPDM, Teflon or Perfluoro diaphragm & Gasket
Motor:
12 or 24V, brushless DC (Special 4.5 V low voltage brush type DC version available)

APN-W Brochure
APN Low Voltage Model

hydra cell brand - OEM Products: Diaphragm Products

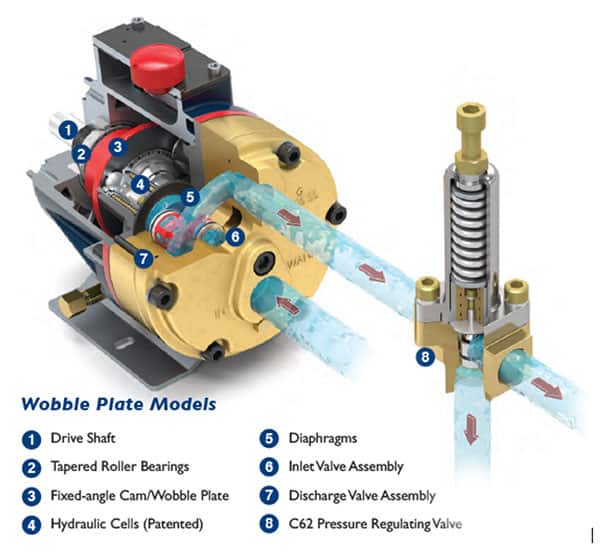

Hydra-Cell high-pressure positive-displacement diaphragm pumps feature a seal-less pumping chamber, so there are no mechanical seals, packing or cups to leak or replace. The seal-less design, and check-valves enable Hydra-Cell to handle abrasives, slurries, and particulates that would damage other types of pumps. Hydra-Cell pumps can run dry indefinitely without damage to the pump with our Patented Kel-Cell design. The multiple diaphragm design of Hydra-Cell provides virtually pulse-less linear flow, without the need for expensive pulsation dampeners.

Many material options allow virtually any chemical to be transferred. Pumps are offered in various alloys, and plastic construction.  Diaphragms can be provided in Buna, EPDM, Neoprene, Viton, Aflas and Teflon. A variety of hardened valve and spring materials are also available.

Hydra-Cell pumps are used in many OEM applications, including high-pressure machine tool coolant systems, chemical spraying, Car Wash, Reverse Osmosis, spray drying, and wire cleaning systems.

Larger models are available above what is shown below. Click Here for applications above 15 HP.

STANDARD PRESSURE HORIZONTAL PUMPS – METALLIC

F20 Model

Max Flow: 1.1 GPM
Max Pressure: 1500 psi
Construction: Brass, 316 SS, Hastelloy
Motor:
Up to 2 HP, 56C or 140TC frame, Close-coupled or base mounted

F20 Catalog

M03/D04 Models

Max Flow: 3.1 GPM
Max Pressure: 2500 psi
Construction: Brass, 316 SS, Hastelloy
Motor:
Up to 3 HP, 56C, 140TC or 180TC frame, Close-coupled, or base mounted

M03 Catalog
D04 Catalog

D10 Model

Max Flow: 8.8 GPM
Max Pressure: 1500 psi
Construction: Cast Iron, Brass, 316SS, 316L SS, Hasteloy, Duplex Alloy 2205
Motor:
Up to 7.5 HP, 56C, 140TC, 180TC Close-coupled, or base mounted

D10 Catalog

D15 Model

Max Flow: 15.5 GPM
Max Pressure: 2500 psi
Construction: Brass, 316L SS
Motor:
Up to 25HP, 140TC-250TC frames, Close-Coupled or base mounted

D15 Catalog

STANDARD PRESSURE HORIZONTAL PUMPS – NON-METALLIC

F20 Model

Max Flow: 1 GPM
Max Pressure: 350 psi
Construction: Polypropylene, Kynar
Motor:
Up to 3/4 HP, 56C frame, Close-coupled

F20 Catalog

M03

Max Flow: 3.1 GPM
Max Pressure: 350 psi
Construction: Polypropylene, Kynar
Motor:
Up to 1 HP, 56C or 140TC frame, Close-coupled, or base mounted

M03 Catalog

D10 Model

Max Flow: 8.8 GPM
Max Pressure: 350 psi
Construction: Polypropylene, Kynar
Motor:
Up to 3 HP, 56C, 140TC or 180TC frame, Close-coupled, or base mounted

D10 Catalog

VERTICAL PUMPS – METALLIC

D12 Model

Max Flow: 8.8 GPM
Max Pressure: 1000 psi
Construction: Brass, Cast Iron, 316L SS
Motor:
Up to 7.5 HP, 180TC or 210TC, Close-coupled

D12 Catalog

D17 Model

Max Flow: 15.5 GPM
Max Pressure: 2500 psi
Construction: Brass, 316L SS
Motor:
Up to 25HP, 140TC-250TC frames, Close-Coupled

Wanner D17 Catalog
